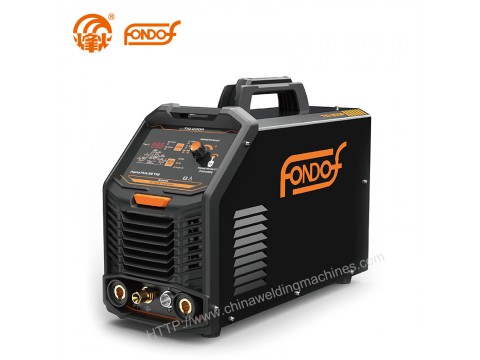

Alpha TIG 200P Welding Machines
The Alpha TIG 200 is the ultimate welding machine for both novice and professional welders alike. Its advanced inverter technology ensures that the welding performance is always smooth and stable, and the adjustable welding amperage and post-flow time provide precise control over the welding process. With its lightweight and portable design, the Alpha TIG 200 is perfect for those who need to take their welding work on the go. The digital display makes it easy to monitor and adjust the welding parameters, and the 2T/4T switch allows for maximum convenience and efficiency. Whether you're working on a DIY project or a professional welding job, the Alpha TIG 200 is the perfect tool for the job.
TIG Welding Machines Features:
IGBT inverter ;
Digital control with pulse ,
100% arc initiation rate.
2T/4T,spot welding ,
Adjustable ARC start and ARC force.
Cellulose electrode applicable.
|
Parameters |
Alpha TIG 200P |
|
Input Voltage (V) |
AC 220V |
|
Frequency (Hz) |
50/60 |
|
Phase |
1 |
|
Rated Input Current (A) |
40 |
|
Rated Input Power (KVA) |
8.9 |
|
No-load Voltage (V) |
60～66 |
|
Pulse Frequency(Hz) |
0.2-500 |
|
Pulse Width(%) |
1-99 |
|
Welding Current (A) |
TIG 10-200 |
|
MMA 15-200 |
|
|
Current Up-slop Time (S) |
0-15 |
|
Initial Current(A) |
10-200 |
|
Current Down-slop Time (S) |
0-15 |
|
Crater Current (A) |
10-200 |
|
Peak Current (A) |
10-200 |
|
base Current (A) |
10-200 |
|
Gas Pre-flow Time (S) |
0-2 |
|
Gas Post-flow Time (S) |
0-20 |
|
Arc Ignition Current (A) |
0-200 |
|
Arc Force (A) |
0-200 |
|
Rated Duty Cycle(%) 40℃ |
35% |
|
30% |
|
|
Insulation Grade |
F |
|
Protection Class |
IP21S |
|
Dimensions (mm) |
455*190*335 |
|
Weight (kg) |
11 |
