Machine Application industry
-woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing
video game cabinets and panels,computer table and Plate furniture auxiliary processing.
-The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety
of materials advertising the production of decorative products.
-die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,
plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Machine configuration and parameters
|
Control system
|
RichAuto DSP A15 Control system
|
|
Spindle
|
China CC brand 4.5kw air cooling,ER32,speed 6000-18000rpm/min
|
|
Machine body and gantry
|
Heavy duty metal welding,Quenching and sandblasting,Twice painting
|
|
Table
|
Vacuum & T slot
|
|
Driving system
|
Leadshine 850w servo motor and driver
|
|
X, Y Axis structure
|
Wuxi Xinyue 1.25M helical rack and Japan SHIMPO Reducer
|
|
Z Axis Structure
|
Original Taiwan TBI ball screw
|
|
X Y Z Axis Square rails
|
Original Taiwan HIWIN brand 25 square rails
|
|
Inverter
|
Fuling Brand 5.5kw
|
|
Electric parts
|
France Schneider
|
|
Limited switch
|
Japan Omron
|
|
Machine cable
|
German Siemens OEM factory cable
|
|
Oil lubrication
|
Hand control with Aluminum oil pipe
|
|
Machine working size
|
X Axis-1300mm ,Y Axis-2500mm ,Z Axis-200mm
|
|
Machine Size
|
Length 3200mm ,Wide 2280mm ,High 2000mm
|
|
Machine Max.travel speed
|
50m/min
|
|
Machine Max.working speed
|
20m/min
|
|
Machine Voltage
|
3PH ,380V ,50/60HZ
|
|
Machine weight
|
1600kg
|

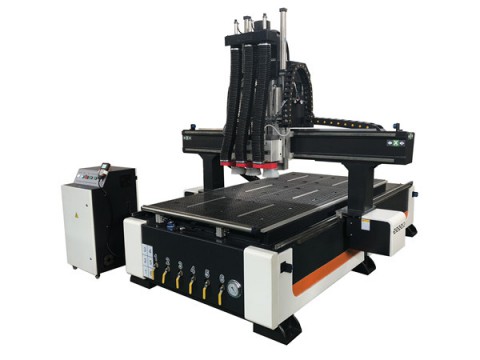

Click image to view original image
