JBL HiQnet Performance Manager Software
The JBL STX835 speaker integrates with JBL HiQnet Performance Manager which guides the system design, configuration and control process in a user friendly fashion much like a simple step-by-step wizard. And since Performance Manager is compatible with VTX Line Array systems, integrating STX JBL cabs is managed in an efficient and intelligent fashion. All test, tuning and calibration control interfaces are embedded eliminating the need to design control panels and the dedicated show mode provides all the monitoring and control needed to run a live performance.

Suspension
All full range STX800 enclosures (except the STX812M monitor) include multiple M10 rigging points for fast, safe and secure suspension.

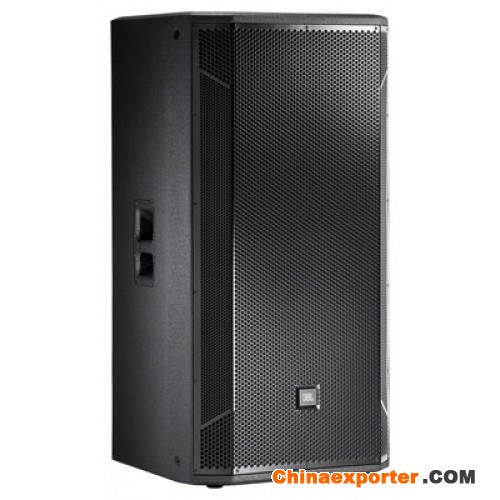

JBL STX835 3-Way PA Speaker Specifications

• Frequency Range ( –10 dB): 32 Hz-20 kHz
• Frequency Response (± 3 dB): 43 Hz-20 kHz
• Coverage Pattern: 60 x 40 degrees nominal
• Sensitivity (1W/1m): 96 dB
• Power Rating (Continuous/Program/Peak): 1200/2400/4800 Watts
• Rated Maximum SPL: 133 dB SPL Peak
• Nominal Impedance: 4 ohms
• Input Connectors: Two NL4
• Operational Modes: Full Range/Bi-Amp with internal passive mid-high crossover network
• Dimensions (HxWxD): 42.0 x 22.4 x 22.6 inches
• Weight: 126 lbs
