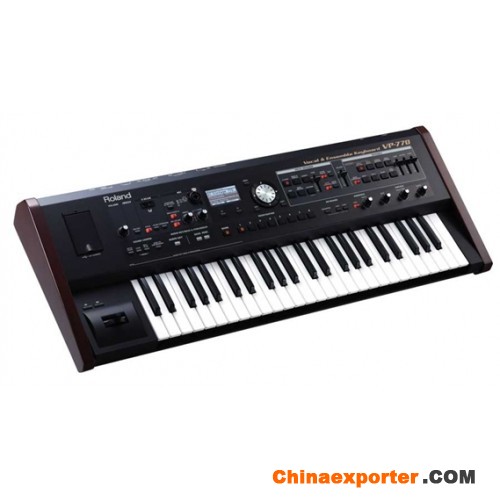

Roland VP770 49 Key Vocal and Ensemble Keyboard Synthesizer Specifications

• Keyboard: 49 keys (with velocity and channel aftertouch)
• Tones: Vocal Designer: CLASSIC, MALE
• Ambience: HALL1, HALL2, STUDIO
• Maximum Polyphony: 128 voices (varies according to the sound generator load)
• Auto Harmony Function: 6 types
• Auto Note Function: Chromatic, Diatonic (Key Assignable)
• Audio Key Function: File Format: WAV, AIFF (44.1 kHz, 16-bit linear), MP3
• Sound Looper Function:
  • Maximum Recording Time: 18 Seconds
  • Recording Method: Overdubbing
  • Play Method: Loop Play
• Controllers: D Beam Controller, Pitch Bend / Modulation Lever, Assignable Switches (S1, S2), V-LINK Button
• Octave Shift: -3 to +3 Octave
• Key Transpose: -6 to +5 (in semitones)
• Number of Registration Memories: Preset: 16, User: 16
• Master Tune: 415.3 Hz to 466.2 Hz
• Nominal Input Level:
  • INPUT (MIC): -50 to -10 dBu
  • INPUT (EXT IN): -36 to +4 dBu
• Input Effects: 3 Band Equalizer, Compressor, Noise Suppressor
• Connectors:
  • Headphones Jack (Stereo 1/4 inch phone type)
  • Output Jacks A (L/MONO, R) (1/4 inch TRS phone type)
  • Output Jacks B (L , R) (1/4 inch phone type)
  • Mic Jack: 1/4 inch phone type or XLR type (phantom power)
  • External Input Jack (1/4 inch phone type)
  • MIDI Connectors (IN, OUT)
  • Hold Pedal Jack
  • Expression Pedal Jack (1, 2)
  • AC Inlet
  • USB Memory Connector
• Display: 128 x 64 dots graphic LCD (with backlit)
• External Storage Device: USB Flash Memory
• Power Supply: AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
• Power Consumption: 16 W
• Accessories:
  • Owner’s Manual
  • Leaflet Using The Unit Safely
  • Audio Key Utility 3 Quick Guide
  • CD-ROM Audio Key Utility 3
  • Hands-free DR-HS5 Microphone
  • USB Memory Protector
  • Hex Wrench
  • Hex Screw
  • Power Cord
• Dimensions (W x D x H): 34 15/16 x 14 9/16 x 4 11/16 inches (886 x 369 x 118 mm)
• Weight: 24 pounds, 5 ounces (11 kg)
